Code from project by Yan Holtz
You can find here only translated code, please refer original text
(require '[clojisr.v1.r :as r :refer [r+ r* r r->clj clj->r bra colon]] '[clojisr.v1.require :refer [require-r]] '[clojisr.v1.applications.plotting :refer [plot->file]])(require-r '[base :as base :refer [$ <-]] '[utils :as u] '[stats :as stats] '[graphics :as g] '[grDevices :as dev] '[tidyverse] '[knitr :as knitr] '[dplyr :as dplyr] '[tidyr :as tidyr] '[ggplot2 :as gg] '[viridis :as viridis] '[forcats] '[extrafont] '[hrbrthemes :as th] '[datasets :refer :all])WARNING: To use hrbrthemes you may want to:

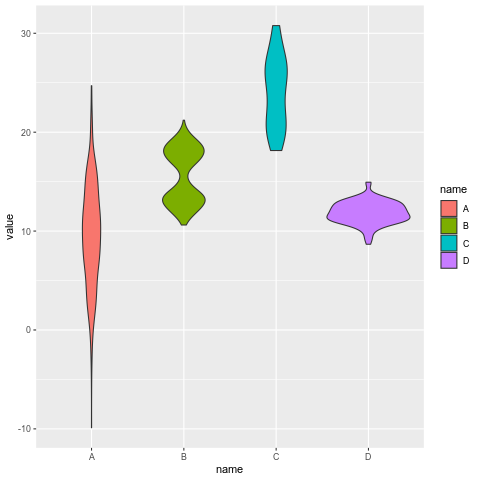

extrafont::font_import() or (r.extrafont/font_import)hrbrthemes::import_roboto_condensed() or (th/import_roboto_condensed)(r.extrafont/loadfonts :quiet true)(base/options :knitr.table.format "html")(base/set-seed 7337)(def data-random (base/data-frame :name [(repeat 500 "A") (repeat 500 "B") (repeat 500 "B") (repeat 20 "C") (repeat 100 "D")] :value [(stats/rnorm 500 10 5) (stats/rnorm 500 13 1) (stats/rnorm 500 18 1) (stats/rnorm 20 25 4) (stats/rnorm 100 12 1)]))(plot->file (str target-path "a.png") (r+ (gg/ggplot data-random (gg/aes :x 'name :y 'value :fill 'name)) (gg/geom_violin)))(def data-wide (bra iris nil (colon 1 4)))(-> data-wide (u/head) (knitr/kable) (r->clj) (first))| Sepal.Length | Sepal.Width | Petal.Length | Petal.Width |
|---|---|---|---|
| 5.1 | 3.5 | 1.4 | 0.2 |
| 4.9 | 3.0 | 1.4 | 0.2 |
| 4.7 | 3.2 | 1.3 | 0.2 |
| 4.6 | 3.1 | 1.5 | 0.2 |
| 5.0 | 3.6 | 1.4 | 0.2 |
| 5.4 | 3.9 | 1.7 | 0.4 |

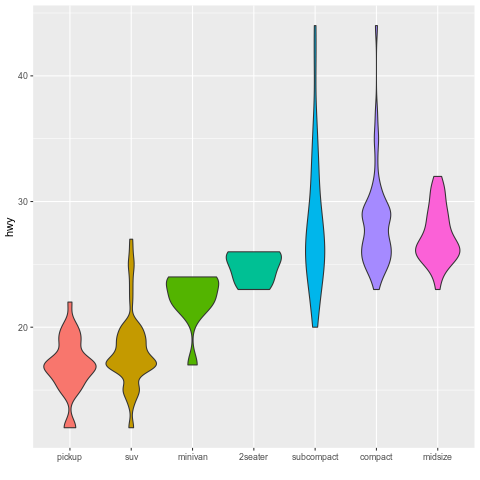

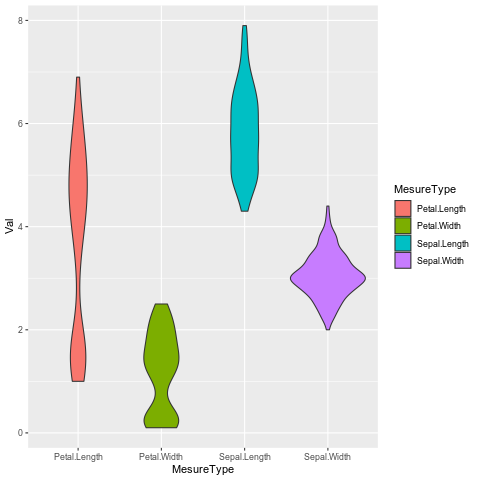

(plot->file (str target-path "b.png") (let [data (-> data-wide (tidyr/gather :key "MesureType" :value "Val"))] (r+ (gg/ggplot data (gg/aes :x 'MesureType :y 'Val :fill 'MesureType)) (gg/geom_violin))))(def mpg (base/$<- gg/mpg 'class (base/with gg/mpg '(reorder class hwy median))))(plot->file (str target-path "c.png") (r+ (gg/ggplot mpg (gg/aes :x 'class :y 'hwy :fill 'class)) (gg/geom_violin) (gg/xlab "") (gg/theme :legend.position "none")))(def data (-> "https://raw.githubusercontent.com/zonination/perceptions/master/probly.csv" (u/read-table :header true :sep ",") (tidyr/gather :key "text" :value "value") (dplyr/mutate :text '(gsub "\\\\." " " text)) (dplyr/mutate :value '(round (as.numeric value) 0)) (dplyr/filter '(%in% text ["Almost Certainly" "Very Good Chance" "We Believe" "Likely" "About Even" "Little Chance" "Chances Are Slight" "Almost No Chance"])) (dplyr/mutate :text '(fct_reorder text value))))(plot->file (str target-path "d.png") (r+ (gg/ggplot data (gg/aes :x 'text :y 'value :color 'text :fill 'text)) (gg/geom_violin :width 2.1 :size 0.2) (viridis/scale_fill_viridis :discrete true) (viridis/scale_color_viridis :discrete true) (th/theme_ipsum_rc) (gg/theme :legend.position "none") (gg/coord_flip) (gg/xlab "") (gg/ylab "Assigned Probability (%)")))(def sample-size (-> data-random (dplyr/group_by 'name) (dplyr/summarize :num '(n))))(plot->file (str target-path "e.png") (let [data (-> data-random (dplyr/left_join sample-size) (dplyr/mutate :myaxis '(paste0 name "\\\n" "n=" num)))] (r+ (gg/ggplot data (gg/aes :x 'myaxis :y 'value :fill 'name)) (gg/geom_violin :width 1.4) (gg/geom_boxplot :width 0.1 :color "grey" :alpha 0.2) (viridis/scale_fill_viridis :discrete true) (th/theme_ipsum_rc) (gg/theme :legend.position "none" :plot.title (gg/element_text :size 11)) (gg/ggtitle "A Violing wrapping a boxplot") (gg/xlab ""))))(def data (-> "https://raw.githubusercontent.com/holtzy/data_to_viz/master/Example_dataset/10_OneNumSevCatSubgroupsSevObs.csv" (u/read-table :header true :sep ",") (dplyr/mutate :tip '(round (* (/ tip total_bill) 100) 1)) (dplyr/mutate :day '(fct_reorder day tip)) (dplyr/mutate :day '(factor day :levels ["Thur" "Fri" "Sat" "Sun"]))))(plot->file (str target-path "f.png") (r+ (gg/ggplot data (gg/aes :fill 'sex :y 'tip :x 'day)) (gg/geom_violin :position "dodge" :alpha 0.5 :outlier.colour "transparent") (viridis/scale_fill_viridis :discrete true :name "") (th/theme_ipsum_rc) (gg/xlab "") (gg/ylab "Tip (%)") (gg/ylim 0 40)))(require-r '[vioplot])(plot->file (str target-path "g.png") (fn [] (let [treatment [(repeat 40 "A") (repeat 40 "B") (repeat 40 "C")] value [(base/sample [2 3 4 5] 40 :replace true) (base/sample [(colon 1 5) (colon 12 17)] 40 :replace true) (base/sample (colon 1 7) 40 :replace true)] data (base/data-frame :treatment treatment :value value)] (base/with data '(vioplot (bra value (== treatment "A")) (bra value (== treatment "B")) (bra value (== treatment "C")) :col (dev/rgb 0.1 0.4 0.7 0.7) :names ["A" "B" "C"])))))
